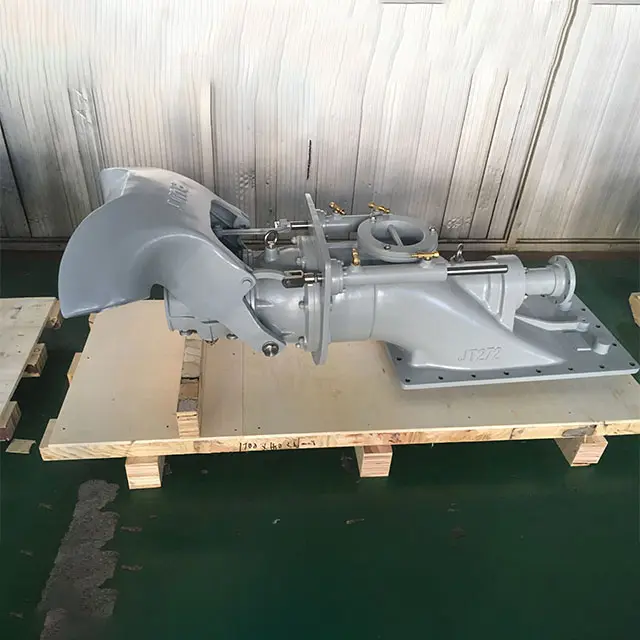

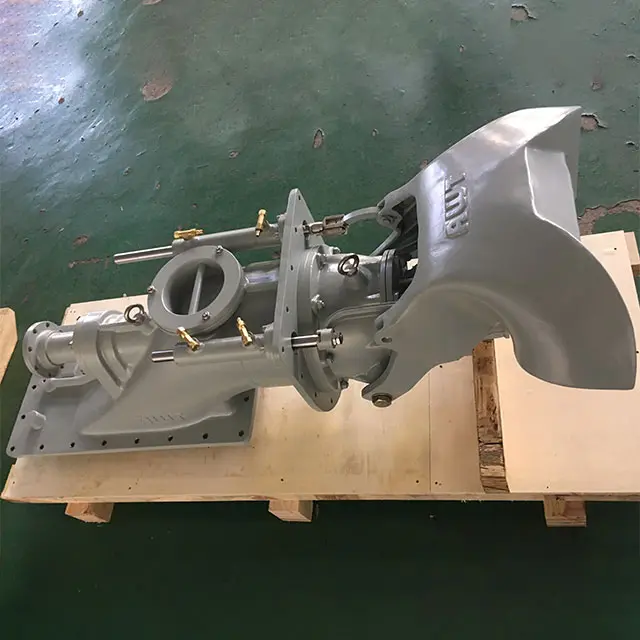

JT272 Water Jet Pump

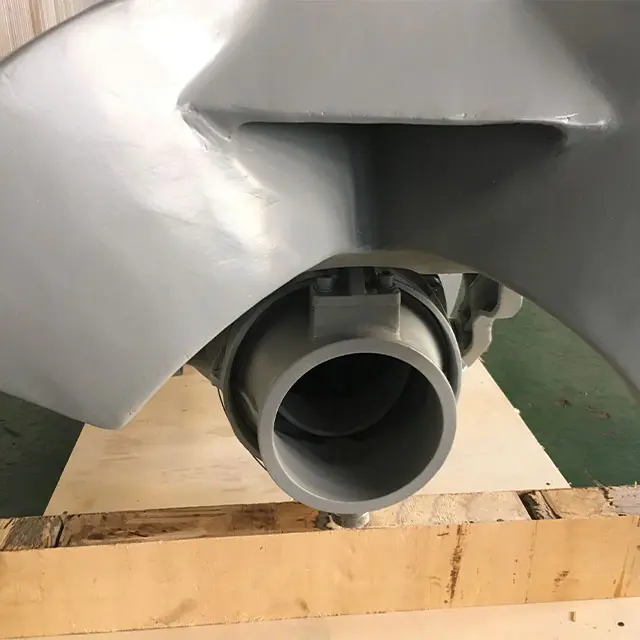

The JT272 is a single – stage axial – flow marine jet pump for workboats, fishing boats, and lifeboats. It has an input power range of 42 – 339 kW (56 – 455 hp) and input speed of 1500 – 3000 rpm. Rotating clockwise when seen from the coupling, it has a 270 – mm impeller diameter and 150 – mm (5.9 – inch) nozzle diameter. The pump housing is made of aluminum alloy, and the spindle and impeller are of stainless steel.

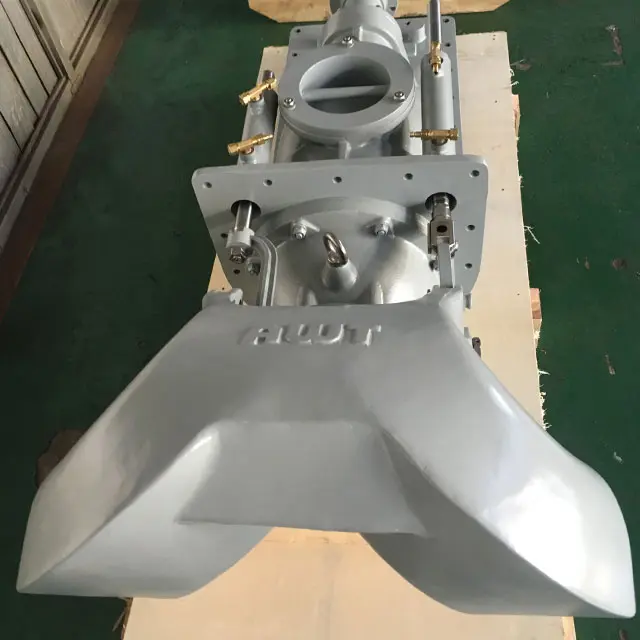

Equipped with a hydraulic steering and a hydraulic reversing system, it has a dual – bucket diversion – type reversing bucket, ensuring easy installation. It uses ISO – standard SWC150 universal joints or same – size ISO – standard flanges for power input. With diesel or electric motors as prime movers and a CCS certificate, it meets international marine safety standards.
For single – pump use, it’s suitable for boats up to 10 m (33 ft) long and 5 t (11023 lb) in weight. For dual – pump use, boats can be up to 12 m (39 ft) long and 10 t (22046 lb). Factory – provided power – speed curves help check engine/motor compatibility. If not matched, a gearbox or custom impeller can be used to adjust for non – standard RPMs.
The single JT272 pump has a dry weight of 122 kg, with a water – containing weight of 43 kg and a gross weight of 187 kg. It comes in a plywood box for packaging. Comprehensive technical documentation is provided to assist with installation planning.
Advantages Of JT272 Water Jet Pump
No exposed components under the hull allow operation in shallow waters, sandbars, and rocky areas while protecting the impeller from damage, reducing maintenance downtime and predictable servicing schedules.
Enclosed high-speed components eliminate risks to marine life and swimmers while reducing underwater equipment damage potential.
Flush-mounted intake design minimizes drag, aligned thrust direction maximizes propulsion efficiency, and stator vanes recover rotational energy lost in propeller systems.
Instant zero-speed thrust enables zero-radius turning, independent of vessel speed, with full reverse achievable via reverse bucket adjustment without engine rotation changes. Multi-pump configurations provide lateral thrust.
Weight variations don’t overload engines – pumps maintain optimal power matching, extending engine lifespan while offering flexible auxiliary propulsion integration.
AWT’s advanced impeller/intake designs deliver superior high/low speed performance, rapid acceleration, and precise maneuverability through hydraulic/electronic control systems supported by global service networks.
Premium corrosion-resistant materials, precision-cast integral impellers, and fully-integrated factory-tested systems ensure long service life with simplified installation/maintenance processes.
Technical Specifications
| Model: | JT272 |
| Input Power: | 42 – 339 / 56 – 455 kw / hp |
| Input Speed: | 1500 – 4000 rpm |
| Impeller Dia: | 270 mm |
| Jet Size: | 1655 mm x 615 mm x 480 mm |
| Volume: | 0.846 m³ |
| Net Weight: | 122 kg |
| Single Jet: | 10m or 5T |
| Twin Jet: | 12m or 10T |
| Lead Time: | 15 – 30 Working Days |
| Payment Terms: | T / T, L / C |
| Model | Input Power | Input Speed | Impeller Dia | Jet Size | Volume | Net Weight | Suggest Boat Max Size and Weight | |
|---|---|---|---|---|---|---|---|---|
| Single Jet | Twin Jet | |||||||
| JT132 | 1.5 – 40 / 2 – 54 kw / hp | 2000 – 6000 rpm | 130 mm | 786 mm x 298 mm x 185 mm | 0.712 m³ | 12 kg | 3m or 0.5T | 4m or 1T |
| JT160 | 11 – 90 / 15 – 121 kw / hp | 3000 – 6000 rpm | 160 mm | 996 mm x 244 mm x 236 mm | 0.138 m³ | 21 kg | 5m or 0.7T | 7m or 1.5T |
| JT182 | 5 – 222 / 6.7 – 298 kw / hp | 2000 – 4000 rpm | 180 mm | 1080 mm x 480 mm x 410 mm | 0.446 m³ | 57 kg | 7m or 2T | 8m or 4T |
| JT232 | 21 – 208 / 28 – 279 kw / hp | 2000 – 4000 rpm | 220 mm | 1050 mm x 600 mm x 480 mm | 0.429 m³ | 66 kg | 8m or 3T | 9m or 6T |
| JT272 | 42 – 339 / 56 – 455 kw / hp | 1500 – 3000 rpm | 270 mm | 1655 mm x 615 mm x 480 mm | 0.846 m³ | 122 kg | 10m or 5T | 12m or 10T |
| JT302 | 44 – 351 / 59 – 471 kw / hp | 1500 – 3000 rpm | 305 mm | 1730 mm x 800 mm x 640 mm | 1.394 m³ | 174 kg | 12m or 7T | 14m or 14T |
| JT342 | 59 – 469 / 79 – 629 kw / hp | 1500 – 3000 rpm | 340 mm | 1830 mm x 800 mm x 640 mm | 1.471 m³ | 205 kg | 15m or 12T | 20m or 25T |
Technical Specifications of JT272 Water Jet Pump
| Water Jet Pump Type | Single-stage Axial Flow Workboat Pump | Input Power | 42 – 339 kW / 56 – 455 hp |
| Input Speed | 1500 – 3000 rpm | Rotation Direction | Clockwise viewed from coupling |
| Impeller Diameter | 270 mm | Nozzle Diameter | 150 mm / 5.9 inch |
| Steering Control Type | Hydraulic Control | Reverse Control Type | Hydraulic Control |
| Reverse Bucket Type | Dual-bucket Shunt Reverse Bucket | Housing Material | Aluminum Alloy |
| Spindle Material | Stainless Steel | Impeller Material | Stainless Steel |
| Dimensions | 1655 mm x 615 mm x 480 mm | Packing Dimensions | 1750 mm x 700 mm x 690 mm |
| Net Weight | 122 kg | Water-containing Weight | 43 kg |
| Gross Weight | 187 kg | Packing Type | Plywood Case |
| Prime Mover Type | Diesel Engine or Electric Motor | Power Input Type | ISO Standard SWC150 Universal Shaft or Flange |
| Classification Society | CCS | ||
